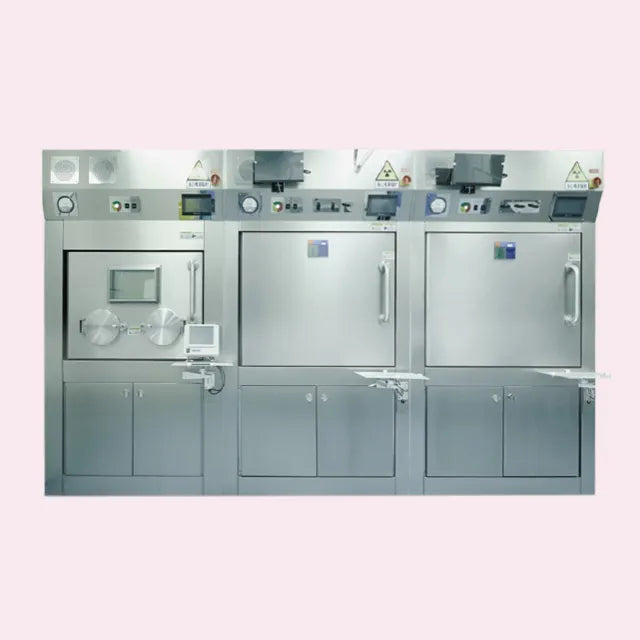

Synthesis Hot Cell - APHC-75C

Model: APHC-75C

The hot cell features a fully isolated protective design with a clean, arc-shaped stainless steel interior, which is perfectly suited for the synthesis of positron radioactive drugs. It meets high standards of lead shielding and biological cleanliness,ensuring compliance with radiation safety environmental standards and guaranteeing a cGMP clean pharmaceutical environment during the synthesis of positron radioactive drugs.

Synthesis Hot Cell - APHC-75C

Key Highlights

  • Top Control Area: Strategically positioned at the top of the hot cell, integrating an independent ventilation system, hot cell control unit, gas valves, and an internal radiation dose monitoring and interlock unit.
  • Middle Work Area: Features a front shielding door for safe operator access and a spacious interior designed to accommodate all market-available synthesizers.
  • Bottom Auxiliary Area: Located at the bottom of the hot cell, fully equipped to fulfill all auxiliary functional requirements.

Technical Specifications

Compliant with cGMP biological cleanliness level for theworking area

Independent synthesis lead cell constructed from seamless welded stainless steel

  • Cleanliness level: Class C
  • Negative pressure: -50 Pa to -200 Pa
  • Airflow: 300 m³/h
  • Sealing: Secondary sealing
  • Supply air: High-efficiency filter
  • Exhaust air: Activated carbon filter

Ergonomically designed operational control panel

  • Hot cell control: Centralized integrated control with a full touch human-machine interface
  • Visual observation: Independent high-definition display for real-time observation
  • Negative pressure indicator: Analogue negative pressure gauge

Lead shielding compliant with ICRP radiation environmentalsafety standards (lead equivalence customizable)

  • Front shielding: 75 mm Pb
  • Side shielding: 60 mm Pb
  • Target Line Shielding: 50 mm Pb equivalent shielding Radiation dose at the surface of the hot cell: Target Line
  • Shielding: 50 mm Pb equivalent shielding
  • Radiation dose at the surface of the hot cell: <5μSv/h @3 Ci-F18
  • Radiation dose at 30 cm from the hot cell: <1μSv/h @ 3Ci-F18

Dimensions

  • Internal dimensions: W850 * D619 * H700 mm
  • External dimensions: W1185 * D1117 * H2400 mm
  • Additional accessories: Lighting, UV light, ozone sterilization unit, target line sealing flange, Airtight power outlets,etc.
