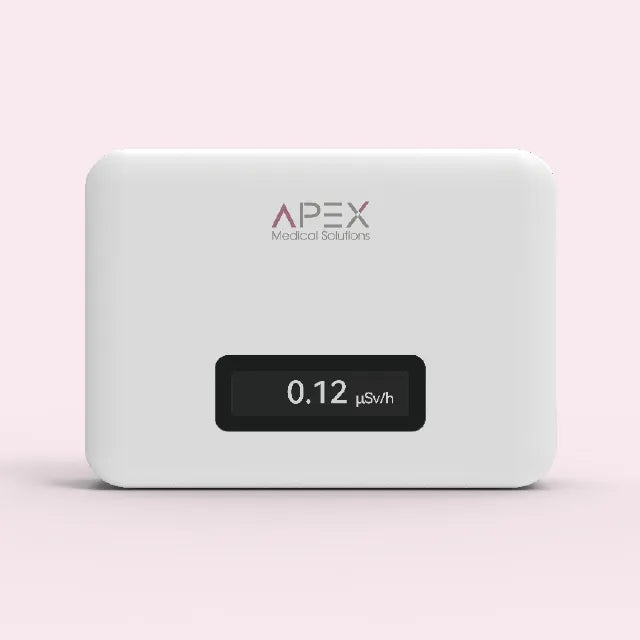

AP1100Med X、Υ Radiation Monitor
AP1100Med X、γ Radiation Monitor is a professional instrument for ambient X/γ radiation monitoring, featuring high sensitivity, fast response, and excellent low-energy response. It provides real-time dose monitoring and immediate audible alarms for abnormal levels to protect personnel.
Applications
Nuclear medicine, radiotherapy, radiology departments, proton and heavy ion therapy centers, radiopharmaceutical R&D and manufacturing, laboratories, and radioactive source warehouses.
Key Highlights
● Pulsed radiation measurement: Integral detector for dose rate measurement in CT, DR, and other pulsed beams. ● Fast response: High-sensitivity detection with proprietary FRC algorithm. ● Versatile communication: RS485, LAN, 4G (optional), WiFi. ● Safety interlock: Interface for external audible-visual alarms and interlock systems. ● One-key mute: Manual alarm silencing for over-threshold conditions.
Technical Specifications
| Product Model | AP1100Med-G | AP1100Med-P |
|---|---|---|
| Detector Type | Energy-compensated G-M tube | Plastic scintillator |
| Measuring Range | 0.01μSv/h~30mSv/h | 0.01μSv/h~1Sv/h |
| Intrinsic Error | ±15% | ±15% |
| Energy Range | 48keV~3MeV | 30keV~3MeV |
| Communication | RS485、RJ45 | RS485、RJ45 |
| Power Supply | DC12V | DC12V |
