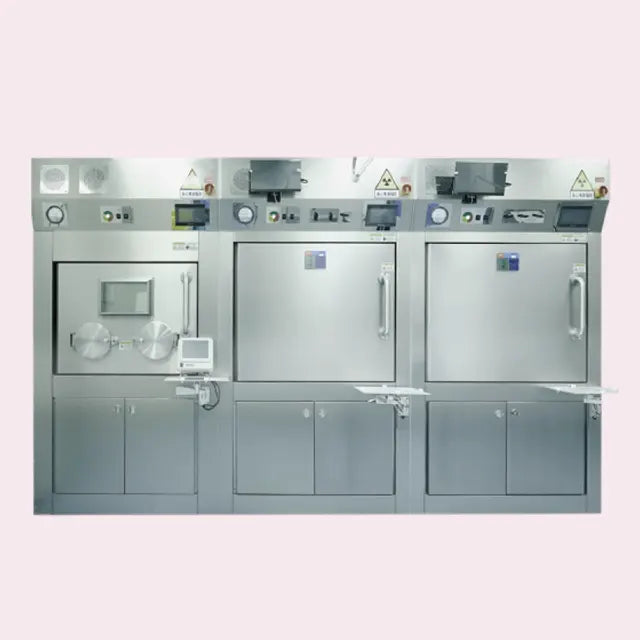

Gas Target Dedicated Synthesis Hot Cell- APQT-80C
Model: APQT-80C
This dedicated gas target synthesis hot cell features enhanced airtight design, ensuring that it can maintain a pressure of at least 1 kpa for over 2 hours after inflation. The easy-to-clean, arc-shaped corners and the clean stainless steel interior meet the requirements for the synthesis of positron-emitting.
Key Highlights
- Top Control Area: Strategically positioned at the top of the hot cell to ensure highly efficient operation, monitoring, and system management.
- Middle Work Area: Features a front shield door for safe access and a spacious interior designed to accommodate all market-available synthesizers.
- Bottom Auxiliary Area: Integrates a radioactive gas collection device and comprehensive ≥70mm Pb protection to fulfill all auxiliary functional requirements.
Technical Specifications
Compliant with cGMP biological cleanliness level for the working area
Constructed from stainless steel with seamless welding, it features one independent synthesis chamber.
- Cleanliness level:Class C
- Negative pressure: -50 to -200 kPa, with a maximum adjustable negative pressure of 2 kPa
- Pressure maintenance time:≥4 hours
- Sealing:Secondary sealing
- Exhaust: Automatically expelled after storage for more than 6 hours
Lead shielding complies with ICRP radiation environmental safety standards (lead equivalence customizable).
- Front shielding:80 mm Pb
- Side shielding: 70 mm Pb
- Target line shielding:50 mm Pb equivalent
- Radiation dose at the surface of the hot cell:5 μSv/h
- Radiation dose at 30 cm from the hot cell:1 μSv/h
