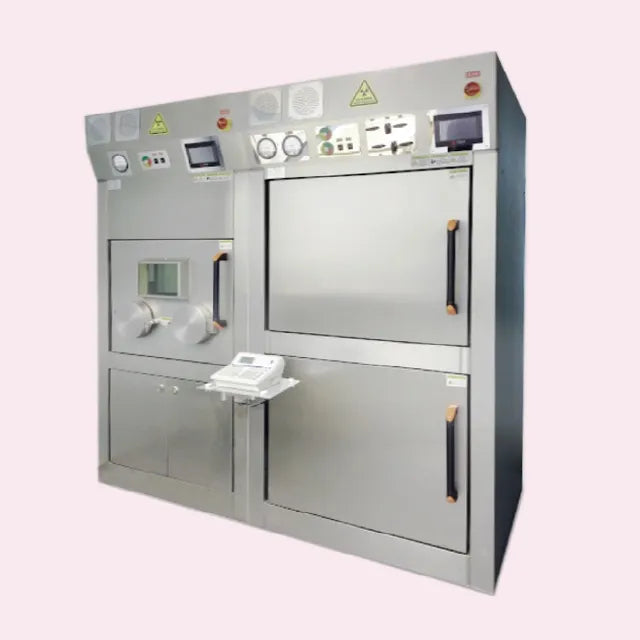

Dual Lead-lined Synthesis Hot Cell - APHC-75C2

Model: APHC-75C2

The hot cell employs a fully isolated protective design with a clean, arc-shaped stainless steel interior, which is fully compliant with the requirements for the synthesis of positron-emitting radioactive drugs. It features high-standard lead shielding and biological cleanliness safety requirements, meeting both radiation safety environmental standards and ensuring a cGMP clean pharmaceutical environment during the synthesis of positron-emitting radioactive drugs.



Dual Lead-lined Synthesis Hot Cell - APHC-75C2

Key Highlights

  • Top Control Area: Strategically positioned at the top of the hot cell to ensure highly efficient operation, monitoring, and system management.
  • Middle Work Area: Features a front shield door for safe operator access and a spacious interior designed to accommodate all market-available synthesizers.
  • Bottom Auxiliary Area: Integrates a radioactive gas collection device and comprehensive ≥70mm Pb protection, with a front auxiliary section equipped to fulfill all auxiliary functional requirements.

Technical Specifications

The working area complies with cGMP biological cleanlinessstandards.

The double-chamber synthesis lead cell is constructed from seamless welded stainless steel.

  • Cleanliness level: Class C
  • Negative pressure: -50 Pa to -200 Pa
  • Airflow: 300 m³/h
  • Sealing: Secondary sealing
  • Supply air: High-efficiency filter
  • Exhaust air: Activated carbon filter

Ergonomically designed operational control panel

  • Hot cell control: Centralized integrated control with a full-touch human-machine interface
  • Visual observation: Independent high-definition display for real-time monitoring
  • Negative pressure indicator: Analogue negative pressure gauge

Lead shielding complies with ICRP radiation environmentalsafety standards (lead equivalence customizable)

  • Front shielding: 75 mm Pb
  • Side shielding: 60 mm Pb
  • Target Line Shielding: 50 mm Pb equivalent shielding
  • Radiation dose at the surface of the hot cell: <5 μSv/h @ 3 Ci-F18
  • Radiation dose at 30 cm from the hot cell: <1 μSv/h @ 3 Ci-F18

Dimensions

  • Internal dimensions: W850 * D619 * H700 mm
  • External dimensions: W1185 * D1117 * H2400 mm
  • Additional accessories: Lighting, UV light, ozone sterilization unit, target line sealing flange, airtight power outlets,etc.
