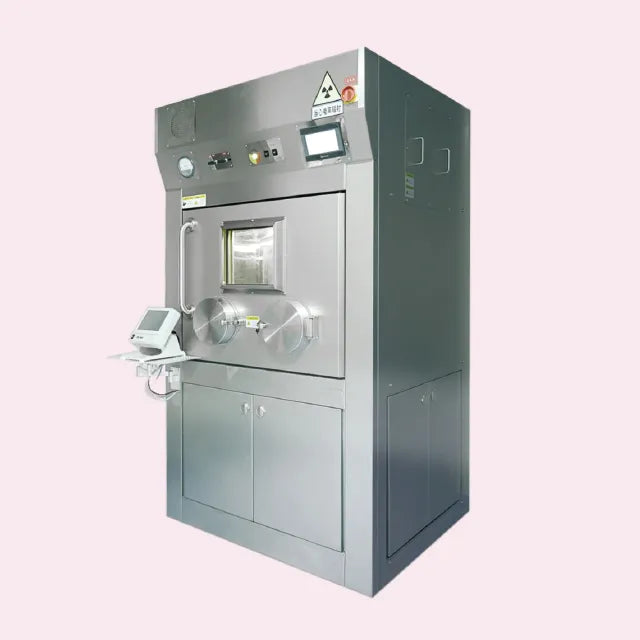

Dispensing Hot Cell - APFZ-65C
Model: APFZ-65C
The APFZ-65C Fractional Hot Cell provides radiation shielding for radiopharmaceutical dispensing via three zones: a top control area with HEPA filtration, a middle working area with lead glass and ports, anda bottom auxiliary area featuring an ionization chamber and transport system.
Technical Specifications
Compliant with cGMP biological cleanliness levelfor the working area
An integrated stainless steel work area equipped with a vertical laminar flow negative pressure ventilation system.
- Cleanliness level: Class A (ISO 100)
- Air supply method: Vertical laminar flow
- Laminar flow velocity: 0.35-0.56 m/sec
- Exhaust air volume: 500 m³/h
- Sealing method: Inflatable air seal
- Air supply filtration: Complete high-efficiency HEPA 99.995%@0.5μm (H14)
- Exhaust air filtration: Radioactive gas filter adsorption
- Front shielding: 65mm Pb
- Side shielding: 60 mm Pb
- Target line shielding: 50 mm Pb equivalent
Ergonomically designed operational control panel
- Control: Human-machine interface for control and feedback of all information
- Visible lead glass window: 320 mm (w) * 220 mm (h)
- Dose monitoring display: Integrated into the human-machine interface
Radioactive material shielding transfer device
- Shielding tray: Made of stainless steel 304,φ 115 mm,5mm pb
- Transfer method: Pneumatic/linear drive
Activity meter ionization chamber shielding
- Measurement well shielding: 60 mm Pb
Real-time dose monitoring and radiation safety interlock device
- Energy range: 50 KeV — 1.5 MeV
- Dose range: 0 μSv/h — 9999 μSv/h
- Threshold setting: Arbitrary setting of interlock thresholds
Dimensions:
- Internal dimensions: 850 mm (w) * 590 mm (d) * 680 mm (h)
- External dimensions: 1125 mm (w) * 1078 mm (d) * 2400 mm (h)
- Accessories: Lighting, UV light, ozone sterilization unit, power outlets, etc.
