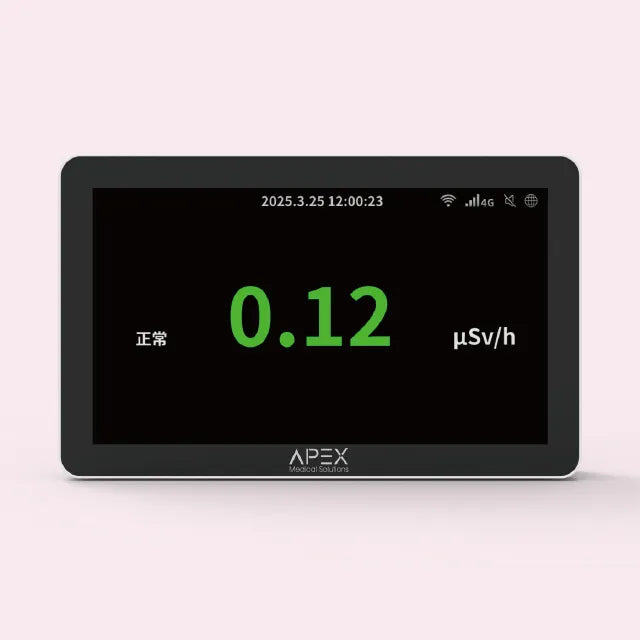

AP1100Med Pro X、Υ Radiation Monitor
The AP1100Med Pro is an upgraded premium version of the AP1100Med series, featuring an integrated detector and concealed cabling for clean, decontamination-friendly installation. It offers high sensitivity and fast response with a large color LCD, visual color-flashing alerts, and audible alarms for rapid response and evacuation.
Applications
Nuclear medicine, radiotherapy, radiology departments, proton and heavy ion therapy centers, radiopharmaceutical facilities, research institutes, laboratories, and radioactive source warehouses.
Key Highlights
● Pulsed radiation measurement: Integral detector for pulsed X-ray beams (CT, DR). ● High-definition color display: Equipped with a 10-inch color LCD screen, the font color on the interface changes and flashes to alert the user when the device malfunctions or triggers an alarm, allowing for a more intuitive view of measurement data and device status. ● POE power supply: Power over Ethernet for simplified cabling and maintenance. ● Versatile Communication: Supports multiple communication methods, including RS485, LAN, Wi-Fi, and 4G (optional), to meet the needs of various environments. ● One-touch mute: When sound and light alarms exceed the threshold, a mute button is provided to manually disable the audible alarm； ● Concealed wiring: The equipment features a concealed wiring design, ensuring that no cables are visible on the wall after installation, resulting in a clean and tidy appearance.
Technical Specifications
| Product Model | AP1100Med-G Pro | AP1100Med-P Pro |
|---|---|---|
| Detector Type | Energy-compensated G-M tube | Plastic scintillator |
| Measuring Range | 0.01μSv/h~100mSv/h | 0.01μSv/h~10Sv/h |
| Energy Range | 48keV~3MeV | 30keV~3MeV |
| Communication | RS485、LAN、WiFi；4G（Optional） | RS485、LAN、WiFi；4G（Optional） |
| Power | DC12V or POE Switch mschine | DC12V or POE Switch mschine |
| Backup Battery | Optional | Optional |
